The FTTH cable production line is an integrated set of modules that converts optical fiber into completed drop and distribution cable products with consistent, repeatable quality.

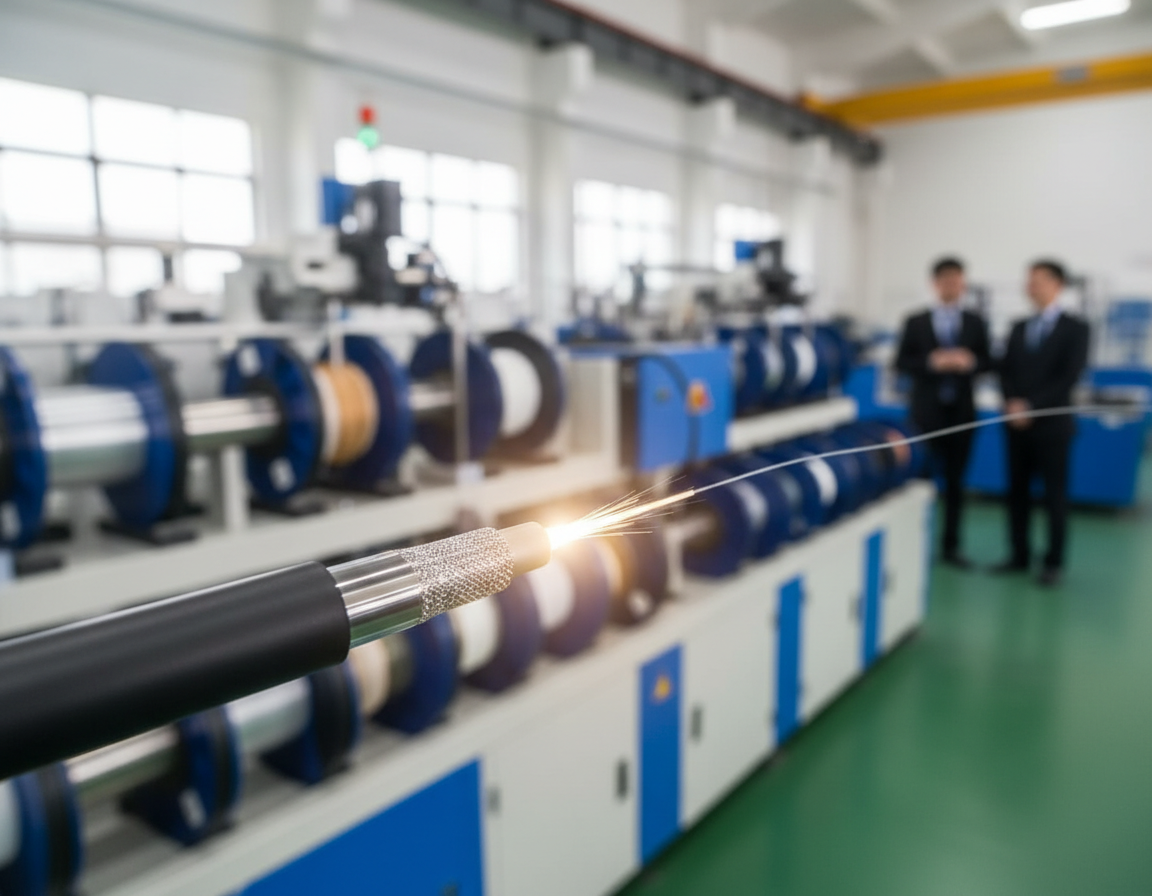

FTTH Cable Production Line
This introduction guides plant managers, process engineers, sourcing teams, and students in the United States who evaluate how industrial production equipment converts fragile fiber into robust cables for broadband service and communications networks.
At the heart of the line, the end-to-end objective is straightforward: shield the fiber, preserve low optical loss, add strength for installation, and ship an output that survives both indoor and outdoor environments.
Expert equipment means reliable tension regulation, synchronized motion control, consistent process operating windows, and well-structured documentation for customer acceptance. This guide helps align the line setup, materials, and validation plan to the intended product instead of purchasing machines first and fixing the process later.
Readers will trace steps such as fiber preparation, buffering/coating, stranding, strength member integration, sheathing (outer-jacket extrusion), optional armor, and final validation and packaging.
Key takeaways: A well-specified line reduces defects and ensures predictable delivery. Lock in process alignment before equipment purchase to save time and cost.
How A Fiber Optic Cable Production Line Operates Today
Where last-mile drop and distribution demands meet factory practice.
Today’s fiber manufacturing lines turn delicate glass into finished products used in U.S. broadband rollouts. Last-mile drop cable and ftth drop demand drives high volumes, so manufacturers emphasize repeatable handling and standards-based output.
Core Modules And Material Flow
Material follows a clear sequence: pay-off → guiding/tensioning → secondary coating/color application → organization and SZ stranding → strength member feed → jacketing (sheathing) → cooling and curing → take-up and testing.
Modules → Outcomes
Stable fiber handling reduces attenuation and protects signal integrity for data and communications. Uniform jacketing supports installation and connector prep. In-line monitors detect loss events before reels ship.
- Indoor vs. outdoor use: different jacket compounds and buffering needs.
- Armored designs add steel tape or wire for added crush and rodent resistance.
- Drop designs typically use tight-buffered fibers and easier connector preparation.
Buyers should view lines as modular. Plants add armoring or skip steps to fit the product type. Throughput is limited by curing and dimensional control, not only motor speed.
Define Your Product And Data Standards Before You Buy Equipment
Kick off with a clear product definition that specifies the cable type, core count, intended service environment, and target user scenarios. Early definition limits which modules the line needs, from tight-buffer units to SZ stranding modules and jacket extrusion equipment.
Select Standards & Measurable Targets
Choose fiber standards such as ITU-T G.652D or bend-insensitive G.657A1/A2 based on bend requirements and routing constraints. Document optical loss budgets, tensile strength, crush and bend limits, and environmental durability before vendor selection.
- Map the exact product type and core/fiber count to define required modules and control needs.
- Set loss budgets and strength targets to steer material selection.
- List required materials (buffer polymers, jacket compounds) and verify U.S. sourcing availability.
Data Standards, Traceability, And Validation
Turn targets into factory-ready information: logged process variables, lot traceability, and customer-required acceptance test reports. Use R&D pilot runs to validate settings and cut scale-up time.
Fiber Coloring Machine
| Target | Factory Implication | Typical Response |
|---|---|---|
| Low loss | Tension and alignment control | Inline attenuation monitoring |
| Strong mechanical performance | Strength member selection | Aramid/metal integration |
| Bend-tolerant performance | Selecting the fiber type | Adopt G.657 variants |
Build Quality Into Optical Fiber: Core, Cladding, Coating Essentials
High-quality optical performance starts in the glass, where core purity and cladding design set the limits for signal loss.
The core and cladding make up the core layer structure: an ultra-pure silica core carries the light while lower-index cladding keeps it confined. This geometry underpins low-loss transmission and stable optical behavior once cabled.
From Preform To Drawn Glass Fiber
Manufacturing begins with preform laydown and consolidation. Moisture removal via a high-temperature furnace cuts defects that raise attenuation.
Drawing pulls the glass into a micron-scale strand. Geometry control at this stage links directly to steady attenuation and predictable transmission performance. One blank can produce roughly 5 km of fiber, so stability saves time and cost.
Primary Coating, Color Coding
Primary coating guards against scratches and handling damage; it is not the primary strength element. Color ID makes splicing, troubleshooting, and downstream fiber management easier.
- Preform consolidation: remove contaminants and moisture.
- Draw: manage diameter and tension for low attenuation.
- Coating and color: protect and label each fiber.
| Layer | Role | Buyer Checklist |
|---|---|---|
| Fiber core | Carry light with minimal attenuation | Define purity and loss specifications |
| Cladding | Confine light and control modal behavior | Verify index profile and geometry |
| Coating (primary) | Scratch protection and color ID | Verify coating adhesion and color coding |
FTTH Cable Production: Step-By-Step Line Setup From Buffering To Sheathing
A workable line setup moves each fiber from pay-off through buffering, stranding, and the outer jacket to a finished reel.
Secondary coating plus fiber coloring stations apply dual-layer UV-cured coatings (≈250 µm) and one-to-twelve channel color coding for identification and traceability. Consistent UV cure rates and stable web tension reduce mix-ups and rework.
Buffering And Materials
Tight buffering (600–900 µm) protects handling and simplifies connector work. Choosing Hytrel, PVC, or LSZH changes flexibility, temperature range, and flame/smoke behavior.
SZ Stranding And Organization
SZ stranding uses alternating lay to balance geometry and improve cable flexibility. Servo control (up to 24 fibers) keeps lay pitch consistent and lowers loss risk.
Strength Members And Jacketing
Aramid yarn is a common tensile element; it delivers pull strength without stressing fibers during installation.
Outer jacket extrusion using PVC, PE, or LSZH follows. Speeds typically range 60–90 m/min and require tight OD and concentricity control.
Armoring And Control Points
When crush or rodent resistance is required, add steel tape or wire armor with adjustable tension control. Operators track tension, cure state, concentricity, OD, and cooling to maintain quality.
| Stage | Key Control Point | Typical Range |
|---|---|---|
| Secondary coating stage | UV cure plus tension | ≈250 µm, high curing consistency |
| Tight buffer | Choice of material | 600–900 µm (Hytrel/PVC/LSZH) |
| Outer sheathing | Concentricity and OD | 60–90 m/min typical |
Optimize Production Speed And Process Control With Modern Automation
When factories run for 24/7 output, synchronized controls and tension systems become the backbone of reliable manufacturing.
PLC, HMI, Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC + HMI platforms to synchronize modules, manage recipes, and log process information. Closed-loop tension control protects fiber during start, stop, and speed changes.
Fiber Secondary Coating Line
Match Speed To Curing And Dimensional Control
Line speed often caps where curing, cooling, or extrusion dimensional control cannot keep up. UV cure completeness, water trough stability, and chill capacity set the true ceiling.
Layout, Changeover, Procurement
Plant layout impacts uptime: proper pay-off/take-up placement plus protected fiber paths reduce damage and shorten changeovers.
- Design quick-change tooling and documented setup steps for faster changeover.
- Specify industrial power (380 V AC ±10%) and a typical ≤55 kW load when ordering equipment.
- Demand remote diagnostics, spare parts availability, and fast service response from the equipment company.
| Focus Area | Operational Outcome | Typical Target |
|---|---|---|
| Module synchronization | Reduced scrap and repeatable runs | Siemens PLC/HMI |
| Closed-loop tension | Protects fiber and stabilizes loss | Closed-loop, high accuracy |
| Layout/changeover | Reduced downtime | Quick-change tooling, staging |
Testing And Quality Control To Reduce Loss And Improve Delivery Reliability
Robust testing and clear quality control convert raw fiber into reliable, field-ready cable reels.
Start with optical validation. Inline attenuation testing and return loss checks confirm signal performance before reels leave the line.
Optical Checks, Signal Integrity
Attenuation testing is the main guardrail against performance complaints. Higher loss values typically point to handling damage, microbends, or contamination.
Return loss checks focus on reflections that impact sensitive links and tight network margins.
Mechanical & Environmental Validation
- Tensile pull tests validate strength members and safe installation loads.
- Crush and bend tests simulate real-world installation stresses.
- Temperature cycling, moisture soak, and vibration tests reduce risk for outdoor and aerial routes.
| Test | Why It’s Done | Typical Decision |
|---|---|---|
| Attenuation | Measure loss per kilometer | Pass/fail against specification |
| Mechanical tests | Validate pull, crush, and bend | Installation rating |
| Environmental tests | Recreate field conditions | Durability confirmed |
Traceability links raw material lots, in-line data, and final test results to reel IDs. Proper reeling, labeling, and protective packaging protect quality and accelerate customer acceptance and delivery.
Final Thoughts
A clear manufacturing plan links product targets to the exact line modules and control limits required for reliable output. Define the FTTH product, service environment, and measurable specifications before choosing equipment or layout.
Fiber optic fundamentals—core, cladding, and coating—set the optical baseline. Careful upstream handling preserves data integrity and keeps final quality within acceptance limits.
Set buffering, organization/stranding, strength members, and jacket selection to match installation conditions. Use automation and closed-loop controls to sustain speed, cut scrap, and make delivery predictable across U.S. markets.
Operational discipline matters: implement comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels quickly. Next step: translate these points into a purchasing checklist (spec targets, utilities, layout, and acceptance tests) before you request quotes or trials.
