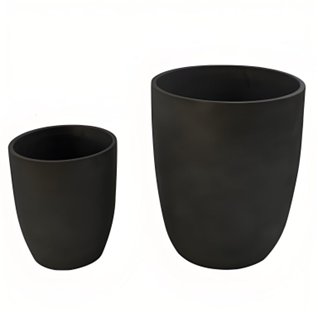

Silicon Carbide Crucible

The Stories That Shaped Our Products

About Recrystallized Silicon Carbide Kiln Rollers: We once served a top-tier electronic ceramics manufacturer whose kilns needed to operate continuously for 3 months without downtime, placing stringent demands on the high-temperature creep resistance of the rollers. Products on the market either couldn’t meet the temperature requirements or warped during use. By optimizing material purity and microstructure, OZBO’s R&D team developed recrystallized silicon carbide rollers with 40% improved creep resistance, enabling our customer to achieve reliable continuous production. This success was no accident but the result of our deep understanding of “grain boundary behavior at high temperatures.”

About Nano-Boron Nitride Coating: A customer once reported that their crucibles lasted only about around 30 cycles during metal melting, with frequent replacements seriously affecting production efficiency. Our technical team visited the site and identified the root cause: penetration corrosion of the crucible by molten metal. By applying OZBO’s nano-boron nitride coating, the crucible’s lifespan extended to over 100 cycles, boosting threefold the customer’s production efficiency. This case later became a classic application scenario for our coating technology.

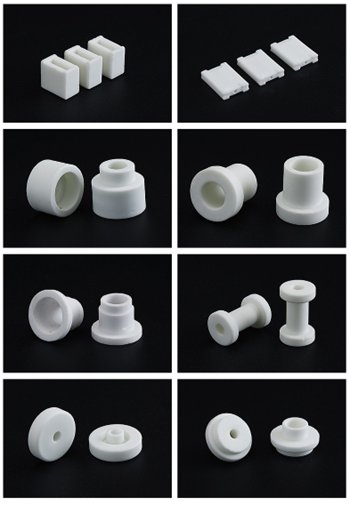

OZBO Ceramic Parts

Core Values: Safeguarding Industrial Excellence With Resilience

The core value of the OZBO brand can be summarized in one word: Resilience.

Material Resilience: Our products deliver stable performance in harsh conditions—this is resilience at the physical level.

Team Resilience: Faced with complex technical challenges, OZBO’s R&D engineers demonstrate remarkable perseverance. To solve a coating adhesion issue, they once worked twelve-hour days for three months in a row, testing hundreds of formulation combinations.

Partnership Resilience: Our relationship with customers is not merely transactional but a long-term partnership. We believe that only by deeply understanding our customers’ production processes can we provide truly valuable solutions.

A Promise To The Future

Today, OZBO has grown into a comprehensive industrial ceramics brand. Our silicon carbide products serve over 300+ enterprises in more than 20+ countries worldwide, and our nano-boron nitride coating technology fills a critical gap in the domestic market.

But we have never stopped moving forward. Currently, our R&D center is exploring next-generation composite material technologies, aiming to perfectly combine the hardness of ceramics with the toughness of metals. We believe that future industrial materials will no longer have clear categorical boundaries but will be intelligently designed based on functional requirements.

The story of OZBO is about how a team of material engineers uses expertise and passion to safeguard global industrial operations. Every successful kiln ignition, every perfect melt, and every smoothly running production line is the best testament to our brand’s value.

I am Roger Luo, founder of the OZBO brand. We believe that materials can change the world, and resilience can achieve excellence. This is the story of OZBO—a story of determination, innovation, and protection.

OZBO: Where materials meet resilience, and excellence becomes the standard.

Close to seven in ten of field techs now prefer compression-style fittings over solder for confined or gas line jobs. This change underlines the critical need for dependable, leak-tight joints on modern job locations.
Shop For 1 4 Compression Coupler
This quick guide delves into Compression Union Brass and other compression-style fittings commonly seen in plumbing, HVAC, and instrumentation in the U.S.. It offers practical tips on choosing the proper 1/4 compression fitting, installing brass union fittings, and diagnosing leak issues. It also covers material compatibility.

Whether you’re a licensed plumber, HVAC tech, instrumentation specialist, or a capable DIYer, this guide fits your needs. It focuses on practical job scenarios: quick setup, reuse, and brass unions’ functionality when you can’t solder. We’ll compare 1/4 inch compression fittings and coupling options, calling out their ideal uses.

For fittings and parts, InstallationPartsSupply.com is a go-to supplier for brass compression union components, compression nuts, and olives. They provide properly matched components quickly. The next sections outline sizing guidance, pressure limits, and setup tips to prevent leaks and cut down on return visits.

Main Takeaways

• Compression Union Brass provides a no-solder, reusable-style connection for many tube types.
• Brass compression union fittings are perfect for compact areas and service repairs.
• 1/4 compression fitting and 1/4 inch compression fitting sizes are widely used in plumbing and instrumentation systems.
• InstallationPartsSupply.com keeps nuts, ferrules, and union bodies for rapid swaps and matching.
• Proper selection and installation minimizes seepage, with step-by-step details later in the guide.

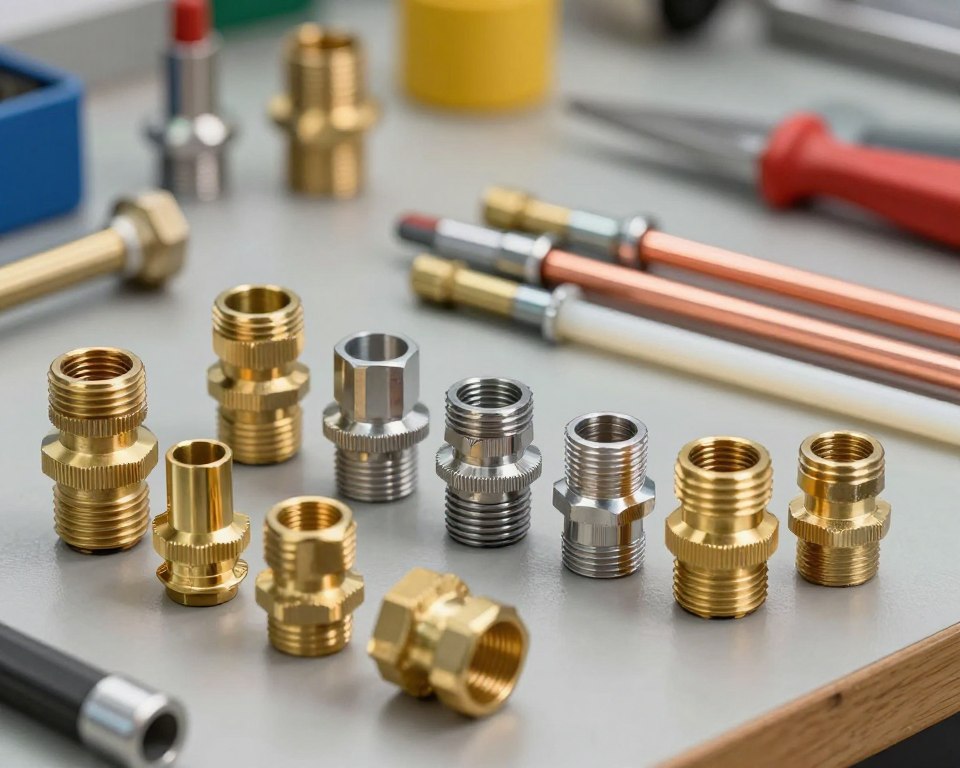

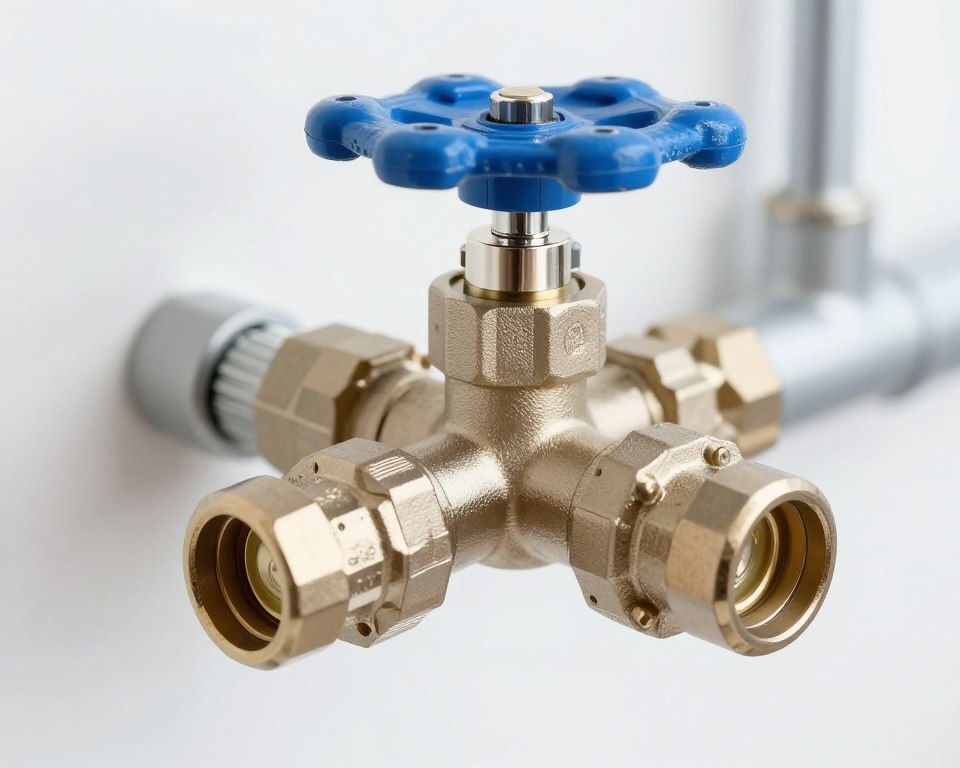

What Are Brass Compression Union Fittings And How They Work

A brass compression union joins two tube sections with no solder. It includes a fitting body, a nut, and ferrules for a secure seal. The 1/4compression fitting is commonly used in instrumentation, refrigeration, and plumbing repairs.

Definition And Core Components

The brass compression union fitting is made up of three core parts. The union body accepts line on either side. The compression nut threads onto the body, pushing the olive into place. The olive seals by compressing onto the tube’s outer diameter.

Unions allow the linking of two tubing ends in a straight run without heat. Each end has its own ferrule and nut, enabling rapid assembly of varied tube sections during field service or job-site repairs.

How It Works In Practice

To install, insert tubing into the union body and secure the nut. As you tighten draws the nut, which forces the ferrule into the body’s angled bore. This motion becomes radial force around the line.

This radial compression creates a line-contact seal between the ferrule and tube. A correct fit delivers a metal-to-metal or metal-to-plastic seal interface depending upon materials. Improper tightening can damage the ferrule or not fully seat, compromising the seal integrity.

Materials And Compatibility Basics

Brass union fittings are appreciated for their resistance to corrosion and workability. They perform well with copper tube and many potable-water systems. They also can be used on low-pressure gas service when set up with approved gas-grade PTFE tape and are kept accessible.

For higher-pressure systems or aggressive fluids, stainless steel compression fittings are usually preferred. Plastic compression fittings are suitable for light-duty water work. The 1/4compression fitting is available in brass and stainless to match various tubing OD, operating pressures, and chemical demands.

Compression Union Brass: Benefits, Common Uses, And Where It Fits

Brass compression union fittings combine durability and everyday usefulness, making them a great fit for plumbing and instrumentation tasks. They can be installed rapidly, with no need for the need for heat, making them perfect for confined or combustible areas. The 1/4 compression union and smaller 1/4compression connectors are popular for their space-saving, dependable joints.

Advantages Of Brass Unions

Setup is fast and tools-only. No heat source or flux and solder is needed, reducing job time and fire risk. Many brass union nuts and bodies are designed for reuse, cutting costs on return service work. Ferrules (olives) may need replacement after several reassemblies.

Brass stands up to corrosion and bends slightly under stress, creating a tight seal with copper tube. This lowers galvanic issues when paired with copper or certain stainless steel components. Suppliers specify many Compression Union Brass products for generous temperature/pressure ranges, suitable for both household and light industrial use.

Common Applications In The United States

In home plumbing, brass compression unions are widely used beneath sinks, at service valves, and on hot water heater connections. The 1/4 compression coupling is commonly used in beverage equipment, ice makers, and small-diameter water lines that need easy service access.

Gas service with accessible copper lines sometimes uses brass compression unions for checks and simple take-apart. HVAC and refrigeration techs depend on brass union fittings for service lines that must be disconnected and reconnected during maintenance.

Instrumentation and industrial panels use compact 1/4compression connectors for sampling, sensing, and pneumatic runs. These environments value the 1/4 compression union for leak-tight joints and rapid swaps.

Why Choose Unions Instead Of Other Fittings

Unions reduce labor time compared to soldered joints. Without a flame, work can move forward in areas where heat would be hazardous or where you need the system back online quickly. A brass compression union makes possible repositioning and later take-apart service for repairs.

Soldered joints often stay lower profile and can be cheaper in material cost. Compression unions deliver service flexibility and on-site advantages, making them the top choice when access, speed, and reuse are priorities. For many installers, a 1/4 compression coupling strikes the best balance between space-saving size and reliable performance.

Selecting The Right 1/4 Inch Compression Fitting And Related Sizes

Choosing the right fitting involves knowing the terminology and doing a quick parts check. It’s important to know if “1/4” refers to the tubing OD or the pipe-thread size before buying. Many catalogs list separate SKUs for tubing, union bodies, and inline joiners under the term “1/4 compression coupling”, “1/4compression fitting”, or “1/4compression coupler”.

Understanding common terminology

It’s important to familiarize yourself with the basic components: the nut, ferrule (olive), union body, and inline coupler. The nut drives the ferrule against the tubing and the fitting taper. A union links two connections, while a coupler joins two tubing ends in a straight run. Always check the manufacturer’s language on product pages for accurate meanings.

Matching tubing OD, ferrule geometry, and thread pitch

The tubing OD must match the ferrule dimensions exactly. Ferrule profile and body taper angle can vary by brand. Using a ferrule from one brand with a fitting body from another can cause leaks. Ensure that the thread style and thread pitch match for parts that screw together. Differentiate between NPT tapered threads and straight threads that use sealant methods or O-rings.

Material and soft tubing notes

For PTFE and plastic tubing, verify the ferrule style and whether a tube insert is required to prevent collapse. Brass ferrules bite differently than stainless ferrules. If you need better resistance to chemical media or high heat, consider stainless options over standard Compression Union Brass.

Pressure and temperature considerations

Pressure ratings differ based on material and fitting size. Brass and compact fittings, suitable for instrumentation work, will have lower PSI than larger stainless steel fittings. Always review the manufacturer’s pressure/temperature tables for the specific 1/4 compression coupling or 1/4compression coupler you plan to use.

Quick checklist

• Confirm whether “1/4” = tubing OD or pipe thread size.
• Align tubing OD to ferrule size and brand geometry.
• Verify thread type and pitch; note NPT vs straight threads.
• Review pressure/temperature ratings for Compression Union Brass or other options.
• For PTFE and plastic, check need for support inserts or secondary seals.

Installation Tips For Brass Compression Unions

Ensuring a brass compression union’s longevity depends on good installation practices. Begin by thoroughly preparing the tubing and components before any final tightening. This initial care is critical in stopping seepage and problems later on.

Preparing tubing for a leak-tight seal

Use a reliable tubing cutter to cut tubing clean and square. Remove any burrs or marks that could lead to leaks. It’s also important to check the tubing’s outside diameter for being round. Uneven diameters, often seen in coiled lines, can prevent proper ferrule seating.

Next, slide the nut and olive onto the tube in the correct order. Always use new olives, as they provide a reliable seal, even on copper tubing. For soft plastic lines, consider using tube inserts or stiffer ferrules to prevent tube collapse.

Correct tightening technique

Begin by hand-tightening the nut. Then, follow the manufacturer’s recommended turn count. This approach helps create the proper seal without tightening too much.

It’s a common misconception that tightening more always helps. Insufficient tightening can lead to a leaking seal. Tightening too much, on the other hand, can damage the seal surfaces, threads, or create leaks. After initial tightening, bring to pressure the system and tighten in tiny increments if slight weeping appear.

Using two wrenches and preventing pipe twist

Hold steady the union body with one wrench while turning the compression nut with another. This method prevents tubing twist and minimizes mechanical stress on the joint.

In tight spaces, ensure the fitting body is supported and properly aligned before final tightening. This prevents cross-threading issues and ensures the ferrule installation is right. Proper technique keeps the fitting from distortion and guarantees a proper seal.

Troubleshooting Leaks And Maintenance For Compression Unions

This section walks through common leak causes and straightforward fixes for Compression Union Brass setups. It guides you through checking the issue, deciding on tightening, part replacement, or changes to sealing approach. The aim is to ensure a reliable, lasting joint for 1/4 compression fittings and other sizes.

How Tight Should A Compression Fitting Be

Achieve a leak-tight seal without deforming the line or ferrules by tightening the nut just enough. Many manufacturers recommend a number of turns past hand-tight over specific torque values. For copper tubing, stop tightening when you feel it snug up and apply only a few quarter turns with a wrench.

Too much tightening can warp ferrules, scratch tubing, and complicate later disassembly. Over-compression is a frequent cause of leakage and harm to threads on Compression Union Brass parts.

Steps For Fixing A Leaking Compression Fitting

Start with the most basic step: hold the union body steady and tighten the nut a small amount with a second wrench. This often fixes light seepage without full breakdown.

If the leak won’t stop, disassemble the joint. Remove the nut and ferrule, then look over the tubing and ferrule for wear. Replace any damaged ferrule before reassembling.

Apply approved PTFE tape for gas only for gas-line service when the manufacturer permits. Do not apply sealant to the ferrule unless advised by the maker. For PTFE tube showing cold-flow creep, use a fitting with an internal O-ring or redundant seal to stop leaks.

Put it back together with a fresh ferrule and nut when necessary. Finger-tighten, then finish with the recommended turn count. Test the joint under normal system pressure and watch for slow seepage.

When To Replace Ferrules Or Fittings

Replace ferrules showing flattening, scratches, or requiring more turns to seal. Do not reuse ferrules on copper tube for dependable long-term results.

Replace the body when internal tapers, bores, or thread surfaces are marred, or when galling has occurred on stainless steel components. Source replacement ferrules, nuts, and bodies that match the original maker when possible to avoid compatibility issues.

Ferrule Types, Tubing Options, And Material Considerations

Grasping ferrule styles and tubing selection is key to consistent sealing. This guide reviews common ferrule shapes and tubing materials. It helps installers and engineers reduce leaks and minimize rework.

One-piece vs. two-piece ferrules

One-piece ferrules are straightforward. A single part grips the tubing, forming a seal. They work well on softer tubing walls like brass tube or some plastic tubing. This design also reduces parts inventory.

Two-piece ferrule systems split the load into a front and a rotating back ferrule. The rear ferrule decouples torque from the sealing face. This design boosts long-term sealing reliability for stainless tubing and high-vibration applications. It’s popular where galling and uneven compression are concerns.

Symmetrical vs asymmetrical ferrules

Symmetrical ferrules have a double-cone profile and install either way. This cuts assembly time when volume matters. They can move off-axis more easily, which may lead to small weeps on very hard plastics.

An asymmetrical ferrule has a tapered profile and must be oriented correctly. It gives better axial positioning and resists off-axis movement. This makes it the top choice for high-precision systems where alignment and repeatable sealing matter.

Tubing choice: metal vs plastic and PTFE concerns

Metal tube like copper tubing or stainless steel offers rigid walls that hold consistent contact with the ferrule. Use clean, square-cut ends to keep seal strength with 1/4compression fittings and other sizes.

Rigid plastics like PEEK and PTFE alternatives can work when they are firm. Softer plastics such as polyurethane and vinyl are poor choices without support. Tubing inserts help when the wall is too soft.

PTFE tube brings excellent chemical resistance and flex, but it tends to cold-flow under compression and heat exposure. This cold flow can lead to leaks over time. Use fittings designed for PTFE, secondary seals, or internal supports to reduce creep when PTFE tubing is required.

Pair ferrule geometry to tubing rigidity, system operating pressure, and assembly volume. For PTFE tubing, select fittings that include secondary sealing or use tubing inserts. Consult tubing and fitting manufacturers for final compatibility checks before installing critical lines.

Comparison: Compression Unions Vs Soldering And Other Joining Methods

Selecting the right joining method is important for safe work, maintenance access, cost control, and appearance. Compression unions are ideal for confined areas and near combustible materials due to their no-flame installation. Solder joints, on the other hand, creates slim joints that many plumbers prefer for exposed runs and long-term permanence.

When to pick compression unions over soldering

Opt for compression unions when flame use is unsafe or restricted. A 1/4 compression union or a 1/4 compression coupling allows for quick repairs without shutting down large systems. Compression Union Brass parts enable fast serviceability and repeated disassembly for checks or changes.

Trade-offs compared to soldering

Solder joints are often less expensive per joint and sit nearer to the pipe for cleaner sightlines. Soldering can deliver durable, vibration-resistant connections for many permanent installs. Compression unions, while bulkier and more expensive per fitting, are a strong option when rework, on-site changes, or spark-free methods are priorities.

Mixing components and manufacturer compatibility

Do not mix ferrules, nuts, and bodies from different brands unless the supplier states compatibility. Differences in taper angle, ferrule lengths, and thread thread pitch can compromise the seal. For mission-critical or high-purity runs, use manufacturer-specified ferrules and parts designed to resist galling issues and meet cleanliness requirements.

Practical checklist

• If space is limited or flame is hazardous, pick compression fittings.
• For long exposed lines prioritizing visual finish and permanent joints, consider soldered connections.
• Keep matched 1/4 compression union parts by brand when using 1/4 compression coupling assemblies.
• When serviceability matters, Compression Union Brass units give dependable reuse and fast replacement.

Conclusion

Compression Union Brass fittings serve as a dependable alternative for soldering in various fields like plumbing, HVAC, gas service, and instrumentation. When properly chosen and installed, they ensure leak-tight performance. This is achieved without the need for a torch or special tools.

Adhering to installation basics is critical. Ensure tubing is cut straight and select the right ferrule and size, which is essential for a 1/4compression fitting or union. Follow the manufacturer’s guidelines for tightening turns. This step is crucial to avoid tube twisting and to maintain the ferrule seal integrity.

For handling minor leaks, a slight snugging often suffices. Replace ferrules that show signs of deformation or work-hardening. It’s also important to avoid mixing components from different manufacturers to preserve the seal’s integrity. For all your needs, refer to InstallationPartsSupply.com. They offer a wealth of information on sizing guidance, pairing ferrules and unions, and locating the right Compression Union Brass components for your project.

To safely hang mirrors, shelving units, or televisions, a drywall anchor kit is essential. Plasterboard on its own won’t support significant weight; screws often fail or tear out. This risks damage or injury. A suitable wall anchor kit provides the necessary hardware for a range of projects.
Top Place To Purchase Dry Wall Screws And Anchors
Premium sets offer a variety: self-drilling anchors, toggle bolts, molly bolts, and plastic expansion anchors, alongside a choice of screws. As a result, you have the means to handle various loads and wall surfaces smoothly.

Names including CrimsonMark, Toggler Snaptoggle, KIRUI, AKKTOL, Ansoon, E-Z Ancor, and Everbilt are frequently suggested for their durability and reliability. Installation Parts Supply.com is a top choice for exhaustive drywall screw holder assortments and mounting hardware. It caters to both homeowners and DIY enthusiasts.

This article is designed to give home improvers in the US with clear, practical tips. It focuses on picking and applying a drywall anchor kit for safely installing items.

The Importance Of Drywall Anchors For Security

Drywall is common in U.S. homes, featuring a plaster core and paper facing. Unfortunately, it lacks strength for carrying heavy items alone. Just screwing a screw directly into the board causes ruin. Using correct anchors and screws prevent these issues, ensuring stability.

The Limitations Of Standard Drywall

Regular 1/2″ gypsum board has trouble with substantial loads without reinforcement. A direct screw may hold for a moment but eventually, the gypsum core will crumble. This results in the anchor failing. For items like shelves, televisions, and cupboards, this could mean abrupt detachment.

Common Risks From Improper Mounting

Hanging objects with basic nails or unanchored screws heightens the chance of slips and wall damage. Heavy objects can drop, risking injury to occupants and damaging belongings. Unanchored furniture poses a tipping danger, particularly in homes with children.

Selecting The Right Anchor For The Job

Selecting the correct fastener relies on the weight and movement. Lightweight decorations approximately 20–25 lb benefits from plastic expansion plugs. Medium loads near 75 lb need a drywall screw with an anchor like a screw-in anchor. Molly bolts or hollow wall sleeves are ideal for about 65 pound medium-duty fixtures.

When dealing with heavy objects like big cupboards, televisions, and shelves, heavy-duty toggle bolts are essential, supporting over 200 lb when properly installed. Always verify weight limits on the box and ensure wall compatibility prior to starting. Most kits offer varied sizes to find the right fastener length and specific gypsum screw anchor for the job.

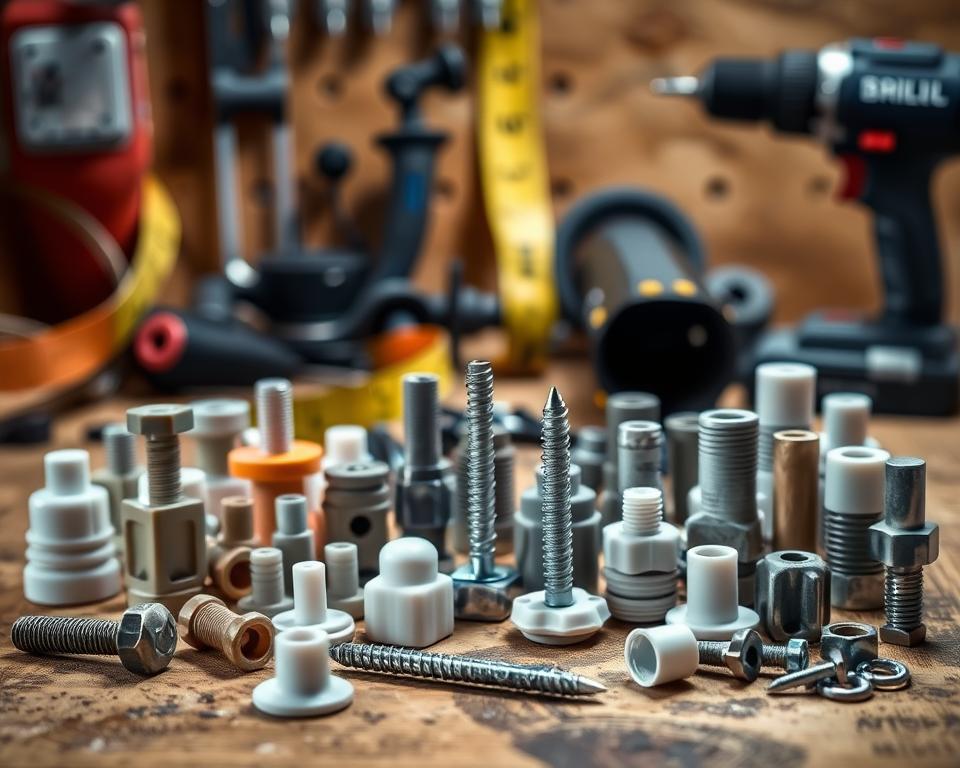

Comprehending Anchor Varieties And Set Selections

Choosing the right anchor involves knowing how each type grips drywall and the hardware included in a kit. A complete anchor assortment or screw anchor kit makes jobs easier, from hanging art to installing shelves. Let’s look at popular choices, underlining the need of a screw organizer or an organized screw and anchor set.

Self-Drilling Anchors And Drywall Screw Holder Sets

Threaded drywall anchors, offered by brands like Ansoon and CrimsonMark, are available in nylon or zinc. They are driven straight into sheetrock without pre-drilling, usually supporting around 75 pounds based on size and wall thickness.

Kits including these anchors, matching screws, and a marked organizer enable quick, organized installations. These kits, with varied sizes, streamline picking the right fit for picture frames, small shelves, and light fixtures.

Using Toggle Anchors And Robust Kits

Toggle anchors, such as the Snaptoggle style, distribute weight behind the surface. This method holds heavy objects, like televisions, cupboards, and lighting. The Snaptoggle brand, for example, can support up to 238 lb in drywall, with stronger limits for solid materials.

Heavy-duty kits usually contain strap toggles, winged toggle bolts, and longer screws for thick panels. These steel parts minimize shifting, providing lasting holds for large objects.

Molly Bolt Options And Metal Anchors

Molly bolts, expanding metal anchors, expand during installation. Typically made of zinc‑plated carbon steel, they need a pre-drilled hole. A correctly sized molly supports about 65 lb, making it suitable for medium-weight items like cabinets.

Sets come with installation tools and multiple sleeve sizes, enabling exact matching of anchor diameter to weight and board depth. Reusable options offer easy adjustments without enlarging holes.

Ribbed And Push-In Anchors For Small Weights

Plastic plugs, available at retailers like The Home Depot, are simple to install. They press or screw into tiny pilot holes, typically holding 20 to 25 pounds.

These plugs are perfect for mounting pictures, window treatments, and decorations. Comprehensive screw anchor kits usually have a variety of these plugs, with proper screws and a screw holder for smooth hanging tasks.

How To Choose The Right Drywall Anchor Kit For Your Project

Selecting the best anchor set starts with a plan. Think about the item being mounted, the forces at play, and the wall type. A smart pick of fastener combination can save time and prevent mistakes.

Evaluating Load And Movement

Begin by figuring out the load of the object. Use static weight as a starting point, then consider potential movements like pulling or shaking. Objects like drapery rods or shelving, that may shift or carry extra load, require a larger safety margin.

For medium loads, select anchors with a 75 pound limit for drywall. For substantial loads, utilize toggle bolts or Snaptoggle-style anchors rated above 200 lb. Always verify the fastener’s suitability with your wall.

Considering Wall Type And Thickness

Identifying the wall type is essential. A hollow sound usually means drywall, while a solid sound suggests brick or plaster. Each requires particular fasteners and drill bits.

Regular indoor sheetrock is usually 1/2″ thick. Thicker 5/8 inch walls or double-board builds need longer anchors. Toggles and mollies need enough space behind the wall for correct opening. Select masonry fasteners for brick or concrete walls.

Kit Contents And Organization

Look for kits that offer a range of anchor types: threaded anchors, plastic ribbed anchors, sleeve anchors, and toggle bolts. Ensuring that mounting screws match the included anchors prevents installation issues.

Quality kits boast sorted sections, setting tools, and clear guides. Well-organized boxes, such as ones by Installation Parts Supply.com and KURUI, keep components at hand during work.

Essential Tools And Supplies For Installation

Begin with the basics: power drill and various sized drill and driver bits. You need these for making pilot holes and setting fasteners. Include a screwdriver or compatible bits to securely fasten screws without stripping them.

Employ a stud detector for weighty objects, and a tape measure plus a spirit level for precise marker and alignment. Essential: put on safety goggles to guard your eyes while drilling.

Have pliers and a mallet ready for extracting fasteners and for soft strikes. A drywall screw holder will keep screws straight, speeding up the process.

Select a fastener set appropriate for the load and wall type. Ensure it includes various anchors like self-drilling, mollies, and plastic plugs for every task.

Organize your hardware in a transparent case. Mark your bits with masking tape for correct depth and to prevent damage during work.

To anchor furniture, use furniture straps or angle brackets. Use stud screws for solid connection to studs. Large furniture shouldn’t rely solely on standard anchors for safety.

A helpful hint: when drilling pilots, choose a drill bit thinner than the fastener and mark depth with tape. Maintain a labeled box of commonly used fasteners for quick fixes.

Possessing an sorted fastener set and the right gear speeds up installation and minimizes wall damage.

How To Install Common Drywall Anchors

Use these instructions to guarantee strong installations using either a wall anchor set or a standard fastener pack. The guides cover steps for threaded anchors, toggle systems, molly bolts, and plastic ribbed anchors. Choosing the correct drywall screw mounts reduces the chance of redoing work and harm to walls.

Setting Up Self-Drilling Anchors

First, mark your intended spot and place the fastener with the wall. These anchors usually don’t need pre-drilled holes.

Grab a driver, or utilize a drill at a low speed setting, to drive the anchor in until level with the surface. Next, drive the screw and fasten it just until it’s secure. Be cautious to stop before it strips or ruins the board.

Setting Up Toggle And Snap Toggle Anchors

Begin by boring a hole according to the maker’s instructions. Then, insert the metal channel through the hole, and tighten the plastic to make sure it lies flat inside the wall.

Adhering to the guide, either snap or trim the straps. Then drive the bolt into the metal bar. Toggles disperse the weight better, perfect for mounting heavy objects. Make sure the cavity depth is sufficient to fit the anchor mechanism.

Installing Molly Bolts And Metal Sleeve Anchors

Bore an opening that fits snugly the molly bolt’s sleeve. Push the anchor in, then tighten the screw to open the anchor, or employ a setting gun from the set if you have one.

This process causes the sleeve to lock behind the drywall, holding it fast. Mollies are suited for mid-duty jobs like mounting shelving or bathroom cabinets. Handily, the screw can be removed and reused if necessary.

Hanging Light Items Using Plastic Anchors

Make a hole a bit smaller than the anchor diameter or just press in the plastic plug and tap it lightly. Then, drive the screw until tight.

Plastic plugs slightly expand to support light loads like frames or decor, holding roughly 20 to 25 pounds in regular sheetrock. They’re ideal for light duty use due to the minimal, easily repaired wall damage they cause.

Project-Specific Examples Using Anchor Kits

When choosing anchors, consider the object and the wall type. An good fastener set offers a variety of hardware. This guarantees you find the ideal fit for shelves, rods, frames, and safety straps.

Hanging medium-weight shelves and curtain rods

To hang floating shelves and curtain rods, choose self-drilling anchors or mollies. Look for ratings of about 65-75 pounds per anchor. Make sure to spread the weight across several anchors and stick to the kit’s spacing instructions. Brands like E-Z Ancor and KURUI are known for selling reliable fasteners perfect for these purposes.

Mounting TVs, cabinets, and heavy mirrors

Mounting heavy items requires the use of toggle bolts or stud mounting. Choices such as Toggler Snaptoggle and winged toggle bolts provide better holding power versus regular plugs. Use studs when possible by driving screws directly into the wood. If studs aren’t an option, pick a high-grade screw anchor kit with heavy-duty toggles for a safer installation.

Securing lightweight frames and decor

Lightweight items like photos and trinkets are best with plastic plugs. These should be rated for 20 to 25 pounds. These types minimize damage with smaller holes, are easy to take out, and are frequently found in sets from Everbilt. Install multiple anchors for grouped items to maintain a balanced look.

Securing furniture against tipping

To keep furniture upright, attach it with heavy-duty screws or dedicated straps. Don’t depend only on regular plastic plugs. Use furniture anchor straps or L-brackets screwed into studs. Alternatively, specialized kits provide the necessary stud-mount hardware. In rental properties, ask your landlord prior to installing and select hardware that comply with building standards.

Safety, Removal, And Maintenance Tips For Dry Wall Screws And Anchors

Begin with a thorough check of every mount. Try a strong tug on mounted items to notice any give. For heavy loads, slowly introduce the load according to instructions, checking along the way. Additionally, consider door slamming vibrations or frequent use. Such dynamics necessitate a sturdy drywall screw with an appropriate anchor.

For safety, increase the load slowly, not all at once. An object may appear stable initially but give way over time. Opt for a stronger anchor system if there’s any give during these tests.

Pulling out fasteners while saving your wall requires identifying the anchor. If dealing with common plastic or self-drilling types, insert a screw partway, then grab with pliers to pull it out cleanly. This technique causes minimal wall damage.

Plaster walls demand gentle handling. Apply a wooden block on the surface to disperse force and minimize plaster breakage. With threaded molly bolts, backing the screw out collapses the bolt, making easier a clean extraction.

For Snaptoggle and similar models, stick to the manufacturer’s steps for taking them out. Some may need an internal mechanism released or the toggle trimmed for removal. If removal is impossible, snap the bolt, push the rest in, and cover the hole.

To mend tiny holes, use spackle and sand for a flat surface. Repair larger areas with a mesh patch and filler, making sure the wall is strong before reusing of screws and anchors.

Consider reusing anchors based on their current state. Fasteners from good brands like Toggler or sturdy metal molly bolts are can be used again if perfectly intact. Throw away and swap any that are split, cracked, or have weakened.

For heavy loads, the stakes are high. Avoid reusing lesser anchors. Upgrade to hardware designed for wall studs or a heavy-duty kit. Picking correct parts lowers risk and promotes safety.

Final Thoughts

A quality anchor set can turn a wobbly job into a secure one and safe. For light decorations, use plastic ribbed anchors. Medium-sized shelves are best suited for toggle or molly options. Heavy objects like televisions and cupboards usually require stud installation or robust anchors. A clearly labeled kit makes easy choosing the right part by displaying ratings and screw sizes.

Start by checking the wall type and depth. Then, select an anchor and screw set that gives specific ratings. The right equipment—a drill, a stud finder, and a spirit level—are crucial. Proper following of the guide guarantees proper installation.

To prevent furniture from tipping over, attach it to studs with safety straps or metal angles. Standard anchors aren’t strong enough for furniture. Opt for well-organized kits and premium parts to trust every installation. After fitting anchors, check their holding capacity and swap them out if loose or deterioration.

Selecting the best anchor set and equipment is vital for protecting your walls and belongings. Always choose top-notch hardware, adhere to the instructions provided, and carry out strength tests on mounts. Doing this leads to a safer home and durable projects.

Reality: public mains can reach 150–200 psi, more than enough to split couplers and age fixtures fast. This short guide explains where a dome-shaped brass control valve fits immediately downstream of your primary shutoff to reduce incoming force to roughly 50 psi. This protects your piping, appliances, and fixtures against leaks and early failure.
Buy Water Pressure Regulator House
This guide covers where the unit installs along the service line, what the internal components do, and quick checks to see whether it’s time to replace it. It also covers pricing—from typical part prices to what pro installation might run.

Installation Parts Supply serves as a reliable retail source for the parts, fittings, and tools mentioned here, so homeowners can find what they need quickly.

When you finish, they’ll understand how controlling excess pressure keeps your home’s plumbing safe and a relatively small spend prevents big repair bills down the road.

What Water Pressure Regulator Valves Do And Why They Matter In Your Home

Homes benefit when a single whole-house unit holds supply pressure in a steady, safe band for all downstream plumbing.

That single device reduces incoming water pressure to a safe level so pipes and fixtures aren’t under constant stress. Typical residential systems perform best around 50 psi, with a practical range of 40–60 PSI.

Protecting Pipes, Fixtures, And Appliances From High Pressure

Lowering excessive force helps prevent persistent drips, pinhole leaks, and even failed supply lines. It can also dampens sudden surges that lead to noisy water hammer and rattle.

Typical Home Water Pressure Ranges (40–60 Psi Sweet Spot)

Keeping pressure in that window helps faucets run smoothly, toilets fill correctly, and shower flow to remain steady. Appliances like dishwashers and washers last longer when they avoid continual high pressure.

• Whole-home protection safeguards the entire plumbing network in a single step.
• By trimming excess strain, homeowners can reduce dripping fixtures and water loss.
• Installation Parts Supply stocks pressure-reducing parts and accessories for a quicker, more dependable install.

How A Pressure Regulator Works: Diaphragm, Spring, And Adjustment Screw

Inside most residential units, a diaphragm backed by a spring continuously adjusts to hold outlet pressure steady.

Core Components And How They Act

At the core of the unit is a flexible diaphragm paired with a steel spring that react quickly to changes in inlet pressure varies.

When inlet pressure climbs, the diaphragm constricts to limit flow to the house. If supply pressure falls, the diaphragm opens so more flow can pass.

Fine-Tuning With The Adjustment Screw

A top-mounted adjustment screw sets the spring tension to dial in the target outlet pressure. Tightening the screw increases tension and lowers the outlet level.

Loosening the screw reduces tension and lets the home run at a higher level. Models with clear top access make this straightforward for homeowners.

• The diaphragm plus spring keep outlet levels steady via automatic modulation.
• This mechanism smooths peaks and valleys so fixtures work consistently.
• Installation Parts Supply carries serviceable regulators with easy adjustment for lasting control.

Where It Installs: Main Water Line Enters The Home

The most protective spot for the regulator is just downstream of the main shutoff, at the point the main line enters the home.

Place the device right after the main shutoff so that your entire plumbing system receives consistent outlet pressure. Common locations include the basement, garage, or crawlspace along the foundation. This spot safeguards all branches, fixtures, and appliances with a single device.

Placement After The Main Shutoff Valve For Whole-House Protection

The preferred location is right after the shutoff so one device stabilizes the whole home. A reachable install makes future service or replacement simple.

• Putting it where the line enters the home lets a single adjustment affect all downstream lines uniformly.
• If the space is cramped, a licensed plumber can move the main valve or install unions/couplings for a tidy tie-in.
• Correct orientation and pipe support avoids stress caused by weight or accidental knocks.
• Labeling the shutoff, device, and test points helps anyone find components fast.

Installation Parts Supply carries water pressure regulator units, plus unions and couplings in sizes for the main water line. Choosing the correct fittings ensures a tidy connection and consistent system performance.

Do You Need One? Testing Incoming Water Pressure Today

A basic pressure-gauge check at an outdoor spigot quickly shows if your system is in a healthy pressure band.

To check incoming pressure, thread a gauge onto an outdoor spigot or the washing-machine cold tap. Confirm every tap, sprinkler, and appliance is off so you’re reading true static PSI.

Using A Gauge At A Hose Bib Or Washing Machine Faucet

Read the gauge with no other flow. A consistent 40–60 PSI reading is generally the best range for most homes.

Readings over 80 psi signal excess stress on your plumbing system and raise the risk of leaks and premature component failure.

Recognizing Symptoms That Suggest A Problem

Listen for pipe banging, unpredictable flow changes at shower heads, or repeated drips from supply hoses. These issues often indicate high PSI or a failing control device.

When Municipal Levels Spike And How To Retest

Municipal supply often rises at night. Test at different times, especially in the early morning, to catch spikes that don’t show up in daytime readings.

If turning the adjustment screw no longer changes the gauge reading, it’s probably time to replace the regulator.

• Grab an inexpensive threaded gauge to measure static psi accurately.
• Measure with everything off to capture true static pressure.
• Recheck at night if you suspect municipal spikes.
• Order gauges, replacement parts, and reliable units via Installation Parts Supply for quick U.S. delivery.

Selecting The Right Regulator For Your Plumbing System

Select a unit that fits your home’s demand and resists corrosion for years of reliable service.

Materials That Last

Choose bronze-body construction and a stainless steel strainer. Those materials resist corrosion and reduce service calls.

A robust body guards the diaphragm and spring so the unit holds a consistent outlet level over time.

Sizing For The Main Line

Match the regulator’s size to the main water line diameter. An undersized regulator restricts flow; an oversized unit can cost more than necessary.

When To Replace

Most regulators last 4–12 years. Many manufacturers recommend swapping it around five years to help avoid failures.

• Select bronze-body valve with stainless strainer for long life.
• Confirm the adjustable outlet range covers a 50 psi target without strain.
• Swap it proactively if the outlet drifts or settings won’t hold.
• Confirm easy access to the adjustment screw and unions for future service.

Installation Parts Supply carries regulators, unions, and fittings so buyers can order everything for a full upgrade at once.

Water Pressure Regulator Valves: Step-By-Step Installation Guide

A little prep keeps the job neat and safe. Begin by turning off the main water at the house valve and open the closest faucet to drain leftover water. Put a bucket and towel below the work area to catch drips and keep the area protected.

Size up the regulator with its threaded couplings then mark square cut lines on the pipe. Make the cut, then clean the ends and fittings with grit cloth plus a wire brush so solder adheres well.

Couplings And Soldering

Brush flux on both surfaces, heat the joint evenly with a torch, then feed in solder until it wicks into the gap completely. Let each joint cool before moving on.

Mounting, Tightening, And Leak Checks

Position the unit with the correct flow direction, hand-tighten the unions, then snug them with pliers without over-torquing. Restore supply slowly, bleed off trapped air at a faucet, and inspect the joints for drips under normal flow.

Pro Tip: When To Call A Licensed Plumber

If you need to move the main valve or the space is too tight to fit the unit correctly, bring in a licensed plumber to reposition the main line and ensure the layout meets code.

• Installation Parts Supply carries regulators plus couplings, solder, flux, grit cloth, unions, and tools for a complete DIY kit.

Adjusting, Maintenance, And Cost Considerations

Keeping the outlet setpoint steady saves fixtures and prevents slow damage.

Dialing In Psi: Loosen Locknut, Turn The Adjustment Screw, Verify

Attach a gauge to a hose bib and note the current reading. Loosen the locking nut, then turn the adjustment screw a little at a time.

Tightening the adjustment screw raises spring tension and lowers the outlet setting. Backing it out does the opposite.

After every adjustment, briefly open a nearby tap to settle the pressure, then recheck the gauge until it remains stable.

Annual Checks And Signs It’s Time To Replace

Build a yearly pressure check into routine maintenance. Keep an eye out for unexplained swings in pressure, persistent banging, or repeated leaks around fixtures.

If adjusting the screw no longer changes the reading or the setpoint drifts, it’s smart to replace the unit to avoid unseen stress on the plumbing.

Diy Vs Pro: Costs And Tools To Have On Hand

Common units are $50–$100, and bigger line sizes up to about $200. A plumber typically charges around $250–$450 depending on access and complexity.

• DIY needs: couplings, cutter, grit cloth, flux, solder, plus a torch.
• Pros add speed, code compliance, and warranty coverage.
• Track dates, readings, and adjustments for faster troubleshooting later.

Where To Buy: Installation Parts Supply

For convenience, order gauges, replacement parts, and full installation kits through Installation Parts Supply. Many products ship fast throughout the United States, making maintenance and upgrades easy to plan.

Conclusion

A correctly sized bronze unit with a stainless strainer keeps household flow steady and helps prevent expensive pipe and fixture damage.

Installed right after the main shutoff, the unit holds outlet levels in the 40–60 psi band so showers, faucets, and appliances run smoothly. The diaphragm and spring act together to soften surges from the water supply.

Routine checks and timely maintenance—often replacing proactively around five years—avoids failures and hidden damage. For reliable, in-stock options and fast delivery, wrap up the project with Installation Parts Supply and you’ll enjoy quieter plumbing that lasts longer at home.
